Jiecang JC35W Compact size Industrial agriculture machines ventilation systems linear actuator

FOB Reference Price:Get Latest Price
1 Piece/Pieces linear actuator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
jiecang
Model Number:
JC35W
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
CCC, CE, ROHS, UL, VDE
Type:
Micro Motor
Torque:
100+
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Waterproof and dustproof
Speed(RPM):
2800
Continuous Current(A):
10%,MAX.2min ON,18min OFF
Output Power:
50W
Voltage(V):
24
Efficiency:
IE 4
Max Load capacity:
1000N
Input:
12V/24V
Speed at full Load:
3~22mm/s
Stroke Length:
100~400mm(option>400)
Mounting Position:
H type
Colour:
Black
Limit Switch:
Build-in
Overload protection:
integrated in appropriate control-box
Duty Cycle:
25%,max 5min .continuous use
IP Grade:
IP 54
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month linear actuator
Packaging & Delivery
Packaging Details
The cartons, tray; Accept customized, please inform us in advance
Port
Ningbo or Shanghai
Lead Time :
Delivery time depend on order quantity.

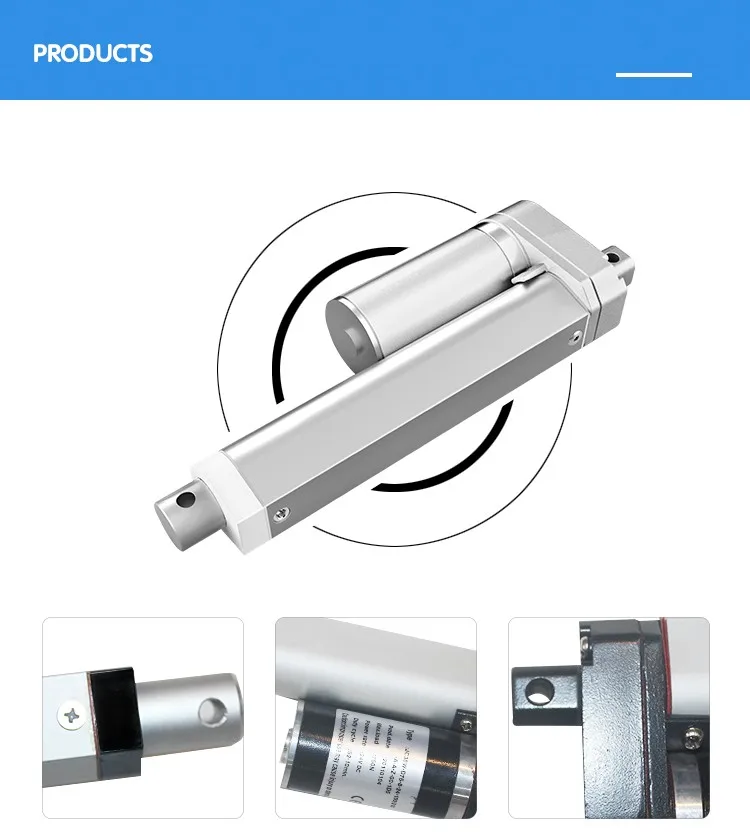

Jiecang JC35W Compact size Industrial agriculture machines ventilation systems linear actuator

Product Description

Load Capacity Push (N)1252505007501000
Load Capacity Pull (N)1252505007501000
Static Load Push*   (N)1503006009001200
Static Load Pull*     (N)1503006009001200
Input  (VDC)24
Speed at Full Load (mm/s)22151164
Input  (VDC)12
Speed at Full Load (mm/s)22141063
Stroke Length (mm)100-400 (option >400)
Mounting PositionH type
ColorBlack
Limit SwitchBuild-In
Overload ProtectionIntegrated in appropriate Control-Box
Duty Cycle25%, Max 5min. Continuous use
Inner TubeAluminum tube
End ClevisZinc-alloy
IP GradeIP54
Operating Temperature0 centigrade ~ +40 centigrade
CertificateCE
ScrewACME screw


* The static load applies when Jiecang Control Box is used , which shortcuts the motor during stop

Applications



Company Information



Packaging & Shipping







Our Services

 Our services

1,5 years global warranty service

2,OEM,ODM,OBM cooperation, Customized service

3,If it is possible, Installation Service is available, if not, we will give you the installed video or the maintenance video.

4,High quality and short lead time

5,24-hour Trade manager on line ,and your inquiry will be answered within 12hs.

Your satisfaction is our eternal need! We promise to provide you with the best service!

FAQ

Q:What is your MOQ?

Our MOQ is usually 10 sets.



Q:What is the shipping port?

Shanghai or Ningbo Port



Q:When can I get the quotation?

Usually you need to send up information, we will quote within 12 hours after we get it.

The details you should to give:

material, size, input,  Load  capacity,quantity, color ,speed  or frequency  , etc.



Q:When is the delivery time?

After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days. Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.



Q:Do you get the relevant certifications?

Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2008,ISO14001:2004,ISO27000 and so on.

When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
