Jiecang JC35L track actuator nut moving outside reclining chair TV lift Recliner linear actuator

FOB Reference Price:Get Latest Price
1 Piece/Pieces reclining chair linear actuator (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 501 - 1000 People
  • Factory Size: 10,000-30,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: Above 50 People
  • Production Certification: 5
  • Patent: 11
  • Trademark: 2
Quality Control >
  • No. of In-line QC/QA: 017
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 85.00%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
jiecang
Model Number:
JC35L
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
CCC, CE, ROHS, UL, VDE
Type:
Micro Motor
Torque:
100+
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Waterproof and dustproof
Speed(RPM):
3250
Continuous Current(A):
10%,MAX.2min ON,18min OFF
Output Power:
50W
Voltage(V):
24
Efficiency:
IE 4
Max load:
4000N
Input:
24V
Stroke length:
100~400mm(option>400)
Mountiing position:
H type
Colour:
Black or Grey
Limit Switch:
Build-in
IP Grade:
IP 20
Operating Temperature:
+5℃~+40℃
Duty Cycle:
10%,max 2 min.continuous use
Guide Tube:
Aluminum Tube
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month linear actuator
Packaging & Delivery
Packaging Details
The cartons, tray; Accept customized, please inform us in advance
Port
Ningbo or Shanghai
Lead Time :
Delivery time depend on order quantity.

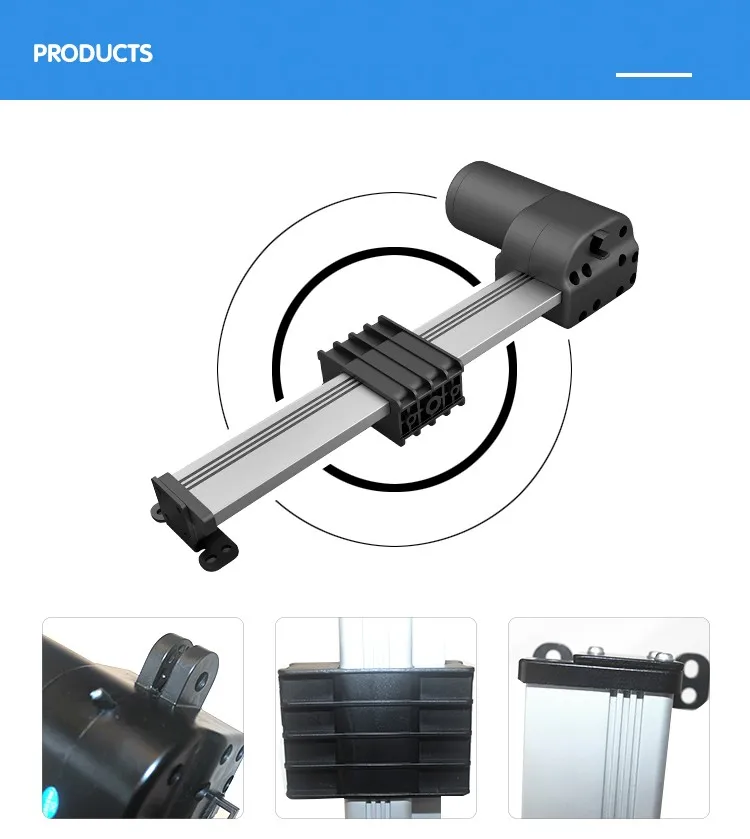

Jiecang JC35L track actuator nut moving outside reclining chair TV lift Recliner linear actuator

Product Description



Load Capacity Push (N)40002000750
Load Capacity Pull (N)40002000750
Static Load *   (N)40002000750
Input  (VDC)24
Speed at Full Load (mm/s)51222
Stroke Length (mm)100~400mm(option >400)
Mounting PositionH type
ColorBlack or Grey
Limit SwitchBuild-In
Overload ProtectionIntegrated in appropriate Control-Box
Duty Cycle10%, Max 2min. Continuous use
Guide TubeAluminum tube
End ClevisAluminum (Steel is optional according to application)
IP GradeIP54
Operating Temperature+5 centigrade ~ +40 centigrade
CertificateCE
Optional FeaturesHall sensor option(type JC35LY)
Relay free option


* The static load applies when Jiecang Control Box is used , which shortcuts the motor during stop

Applications



Company Information



Packaging & Shipping







Our Services

 Our services

1,5 years global warranty service

2,OEM,ODM,OBM cooperation, Customized service

3,If it is possible, Installation Service is available, if not, we will give you the installed video or the maintenance video.

4,High quality and short lead time

5,24-hour Trade manager on line ,and your inquiry will be answered within 12hs.

Your satisfaction is our eternal need! We promise to provide you with the best service!

FAQ

Q:What is your MOQ?

Our MOQ is usually 10 sets.



Q:What is the shipping port?

Shanghai or Ningbo Port



Q:When can I get the quotation?

Usually you need to send up information, we will quote within 12 hours after we get it.

The details you should to give:

material, size, input,  Load  capacity,quantity, color ,speed  or frequency  , etc.



Q:When is the delivery time?

After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days. Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.



Q:Do you get the relevant certifications?

Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2008,ISO14001:2004,ISO27000 and so on.

When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
