Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: jiecang
  • Model Number: JC35DF linear actuator
  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance
  • Certification: CCC, CE, ROHS, UL
  • Type: Micro Motor
  • Torque: 100+
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Waterproof and dustproof
  • Speed(RPM): 3250
  • Continuous Current(A): 10%,MAX.2min ON,18min OFF
  • Output Power: 50W
  • Voltage(V): 24
  • Efficiency: IE 4
  • classification: linear actuator
  • stroke length: 100~400mm(option >400MM)
  • speed at full load: 3~22 mm/s
  • colour: Black or Grey
  • Limit Switch: Build-in
  • Top clevis: Steel
  • Operating Temperature: +5℃~+40℃
  • Standard: CE/UL60601-1/EN60601-1
  • Input: 12 or 24 VDC
  • Mounting Position: H type or V type

Packaging & Delivery

Packaging Details: Linear actuator packing, cartons, tray, accept custom, please inform us in advance.
Delivery Detail: Delivery time depend on order quantity.

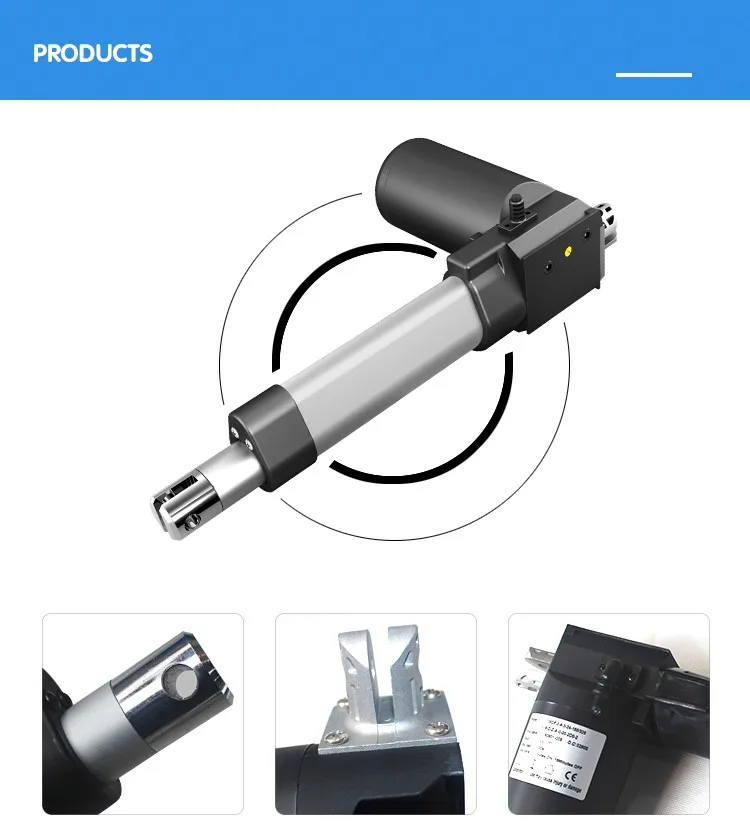

Jiecang JC35DF DC 24V 12V strong and robust design low noise IP66 max load 6000N linear actuator

Product Description




Load Capacity Push (N)6000400030002000750
Load Capacity Pull (N)4000400030002000750
Static Load Push*   (N)6000400030002000750
Static Load Pull*     (N)4000400030002000750
Input  (VDC)24
Speed at Full Load (mm/s)3481222
Input  (VDC)12
Speed at Full Load (mm/s)2.63.55918
Stroke Length (mm)100-400 (option >400)
Mounting PositionH or V type
ColorBlack or Grey
Limit SwitchBuild-In
Overload ProtectionIntegrated in appropriate Control-Box
Duty Cycle10%, Max 2min. Continuous use
Inner TubeAluminum tube
End ClevisAluminum-Alloy (Steel is optional according to application)
Top ClevisSteel
IP GradeIP 66
Operating Temperature+5 centigrade ~ +40 centigrade
CertificateUL/ CE
Option FeaturesReed Switch Option(type JC35DFY)
Hall Sensor Option(type JC35DFY)
Push-Only Push Option(type JC35DFP)
Relay Free Option


* The static load applies when Jiecang Control Box is used , which shortcuts the motor during stop
