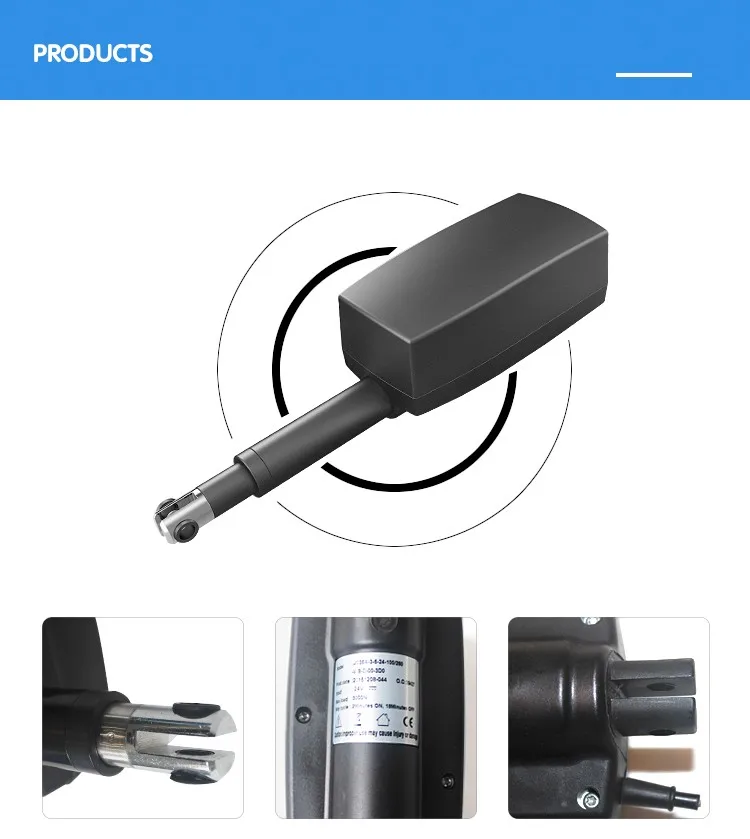

Jiecang JC35A 24V DC motor Powerful Mini Electric wheelchair Linear Actuator

FOB Reference Price:Get Latest Price
1 Set/Sets wheelchair Linear Actuator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JIECANG
Model Number:
JC35A
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Hospital bed
Certification:
CCC, CE, ROHS, UL, VDE, Other
Type:
Micro Motor
Torque:
Requests
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
IP54
Speed(RPM):
5300
Continuous Current(A):
10%,MAX.2min ON,18min OFF
Output Power:
100W
Voltage(V):
24
Efficiency:
IE 4
Model:
JC35A
load capacity:
1500N /3000N
Stroke Length:
100~400mm(option>400)
Speed at full load:
5mm(3000N)/9mm(1500N)
Color:
Black or Gray
Input:
24V
IP Grade:
IP54
operating temperature:
+5℃~+40℃
Mounting position:
V type
Duty Cycle:
10%,max 2 min ,continuous use
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month wheelchair Linear Actuator
Packaging & Delivery
Packaging Details
1. The Cartons, Tray; We also Accept Customized Packing, please inform us in advance
2. Lable and Logo can be customized.
Port
Ningbo/Shanghai
Lead Time :
Delivery Time depending on the order quantity .

Jiecang JC35A 24V DC motor Powerful Mini Electric wheelchair Linear Actuator

Product Description



Load Capacity Push (N)30001500
Load Capacity Pull (N)30001500
Static Load Push*   (N)30001500
Static Load Pull*     (N)20001500
Input  (VDC)24
Speed at Full Load (mm/s)59
Stroke Length (mm)100-400 (option >400)
Mounting PositionV type
ColorBlack or Grey
Limit SwitchNo limit switch
Overload ProtectionIntegrated in appropriate Control-Box
Duty Cycle10%, Max 2min. Continuous use
Inner TubeStainless steel tube
End Clevisplastic
Top ClevisSteel
IP GradeIP 54
Operating Temperature+5 centigrade ~ +40 centigrade
Certificate CE


* The static load applies when Jiecang Control Box is used , which shortcuts the motor during stop



Applications


Company Information







Packaging & Shipping






Our Services

 Our services

1. 5 years global warranty service

2. OEM,ODM,OBM cooperation, Customized service

3. If it is possible, Installation Service is available, if not, we will give you the installed video or the maintenance video.

4. High quality and short lead time

5. 24-hour Trade manager on line ,and your inquiry will be answered within 12hs.

Your satisfaction is our eternal need! We promise to provide you with the best service!

FAQ

Q:What is your MOQ?

Our MOQ is usually 10 sets.



Q:What is the shipping port?

Shanghai or Ningbo Port



Q:When can I get the quotation?

Usually you need to send up information, we will quote within 12 hours after we get it.

The details you should to give:

material, size, input,  Load  capacity,quantity, color ,speed  or frequency  , etc.



Q:When is the delivery time?

After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days. Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.



Q:Do you get the relevant certifications?

Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2008,ISO14001:2004,ISO27000 and so on.

When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
